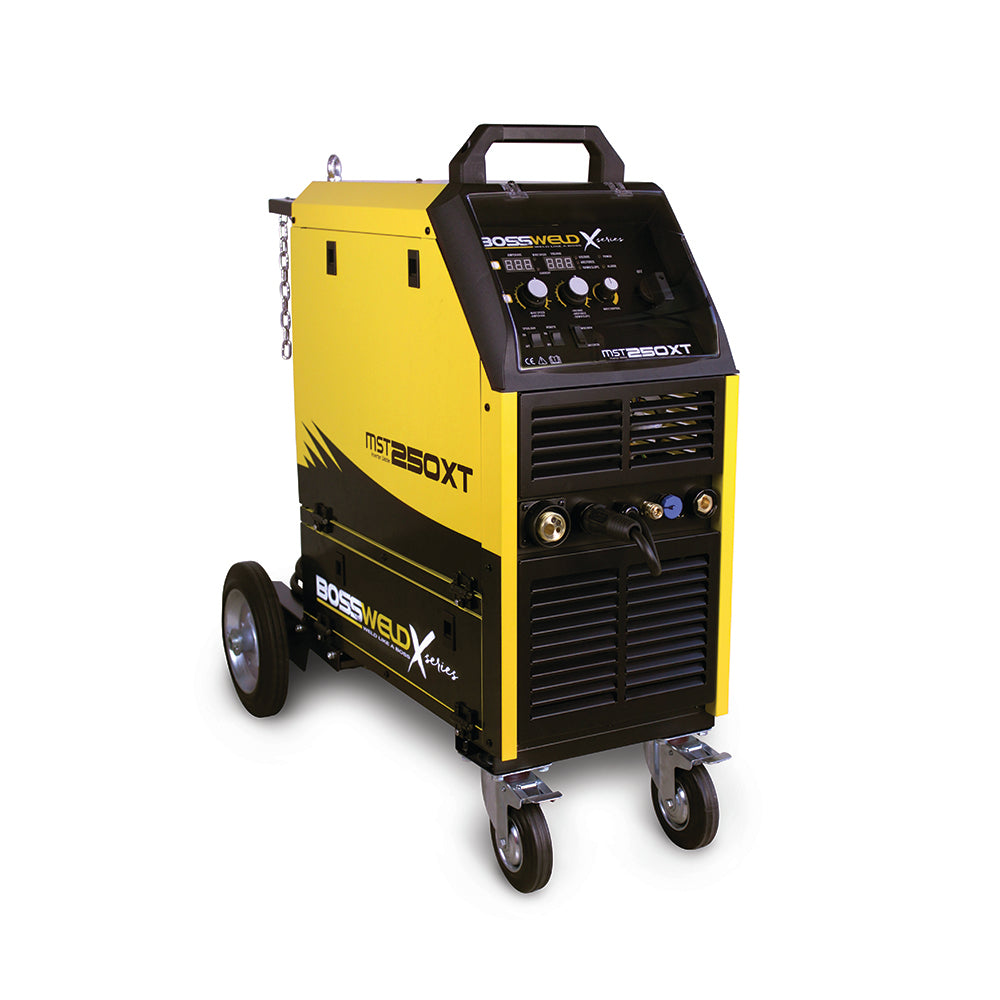

BOSSWELD MST-250XT INVERTER MIG/STICK/TIG WELDING MACHINE

Bossweld X-Series MST-250X Inverter Mig/Stick/Tig Welding Machine, 250 Amp
699625

The Bossweld MST 250XT is a multi-process, inverter-based welder that provides the opportunity to MIG, Stick and TIG weld from the same machine. Heavy duty and designed for industrial use; the 250 Amps at 60% delivers ample power, and the front swivel wheels make it easy to maneuver.
Single phase 230V
250 Amp output
MIG /Stick / DC TIG welder
Suitable for industrial
Digital Current Display Meter for Accurate setting and feedback of welding output
4 Roll wire drive system
Stepless adjustment control
Gas /gasless operation
2T / 4T trigger latching
Excellent arc stability
Gun/lead hanger
Suits D200/D300 spools
Spool gun ready

Standard inclusions:
MST 250XT Inverter Welder
4m Ergon BZ24 MIG torch
3m Twist lock electrode holder and cable
3m 200A earth clamp and cable
2m gas hose
Bossweld twin gauge argon regulator
0.8 / 0.9mm V groove rollers (gas wire)
0.8 / 0.9mm Knurled rollers (gasless wire)
Operation manual

Specifications:
Input power: Single phase 230V
Output current range: MIG 50-250A, MMA/TIG 10-250A
Open Circuit voltage: MIG 55.3V, MMA 58.9V
I Max: MIG 50.6A, MMA 57.1A, TIG 39.6A
I eff: MIG 14.8A, MMA 14.4A, TIG 10.2A
Duty cycle @ 40? C: MIG 60% @ 90A, MMA/TIG 60% @ 85A
Insulation Class: IP21S / S
Wire Diameter: 0.8mm to 1.6mm
Electrode Diameter: 2.5mm to 5.0mm
Thermal overload: YES
Minimum generator: 12.5 KVA
Dimension (mm): 870 x 900 x 480mm
Weight (Kg) 51.2
