WELDPRO TIG200 ACDC PULSE WELDER with Foot Control

WELDPRO TIG200 ACDC PULSE WELDER (3 year commercial warranty)

Complete with FOOT CONTROL

The same as our BOSSWELD Extreme model but under our Brand

LIMITED SPECIAL!



The WELDPRO 200 AC/DC TIG welder uses the latest in IGBT welder technology and the front panel is designed to simplify the welding process, giving exceptional results on Aluminum, Stainless Steel and Mild Steel.
Industrial compact case with recessed controls
ARC force and Hot start for greater control and ease of use
Lightweight & Compact Design only 7kg!
Lift TIG and HF Start modes for versatility when welding around sensitive electronic equipment or when welding at very low amps
Generator Friendly
Digital Current Display Meter for Accurate setting and feedback of welding output
60% @ 125A duty cycle
STICK/TIG Leads and argon regulator included for quick setup
3 year commercial warranty

Standard inclusions:

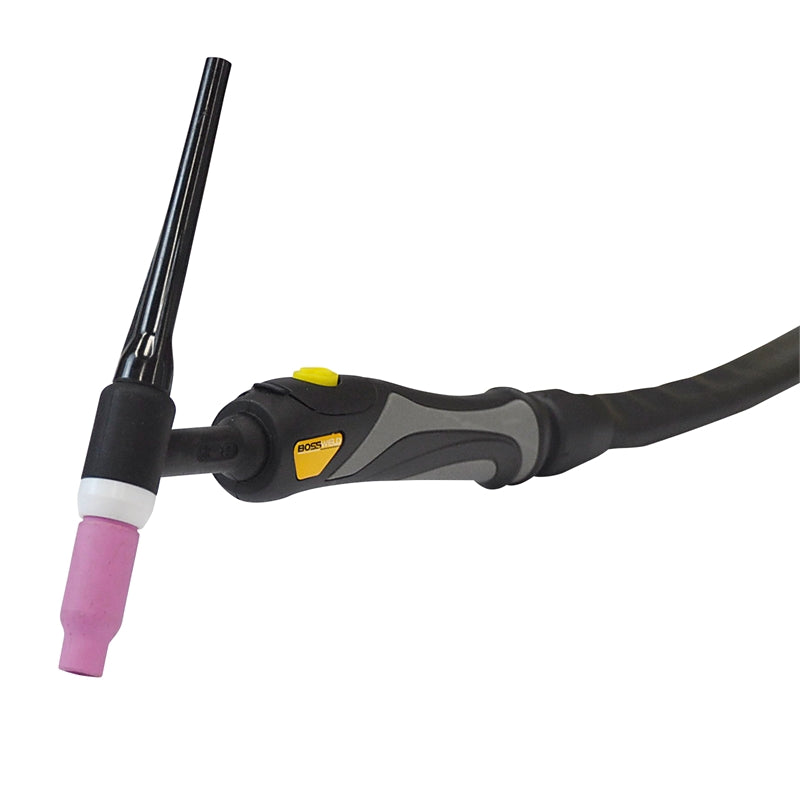

Professional WP26 Style 12ft TIG Torch with variable amps control.

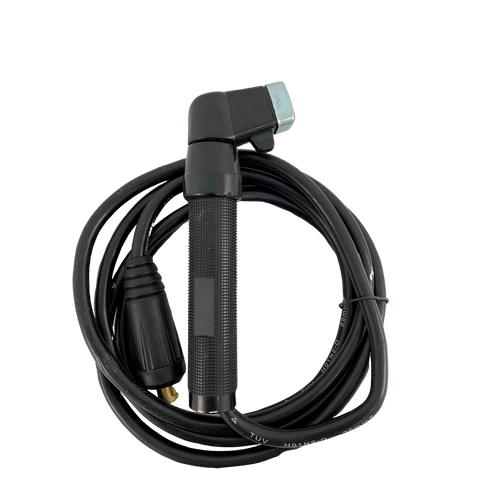

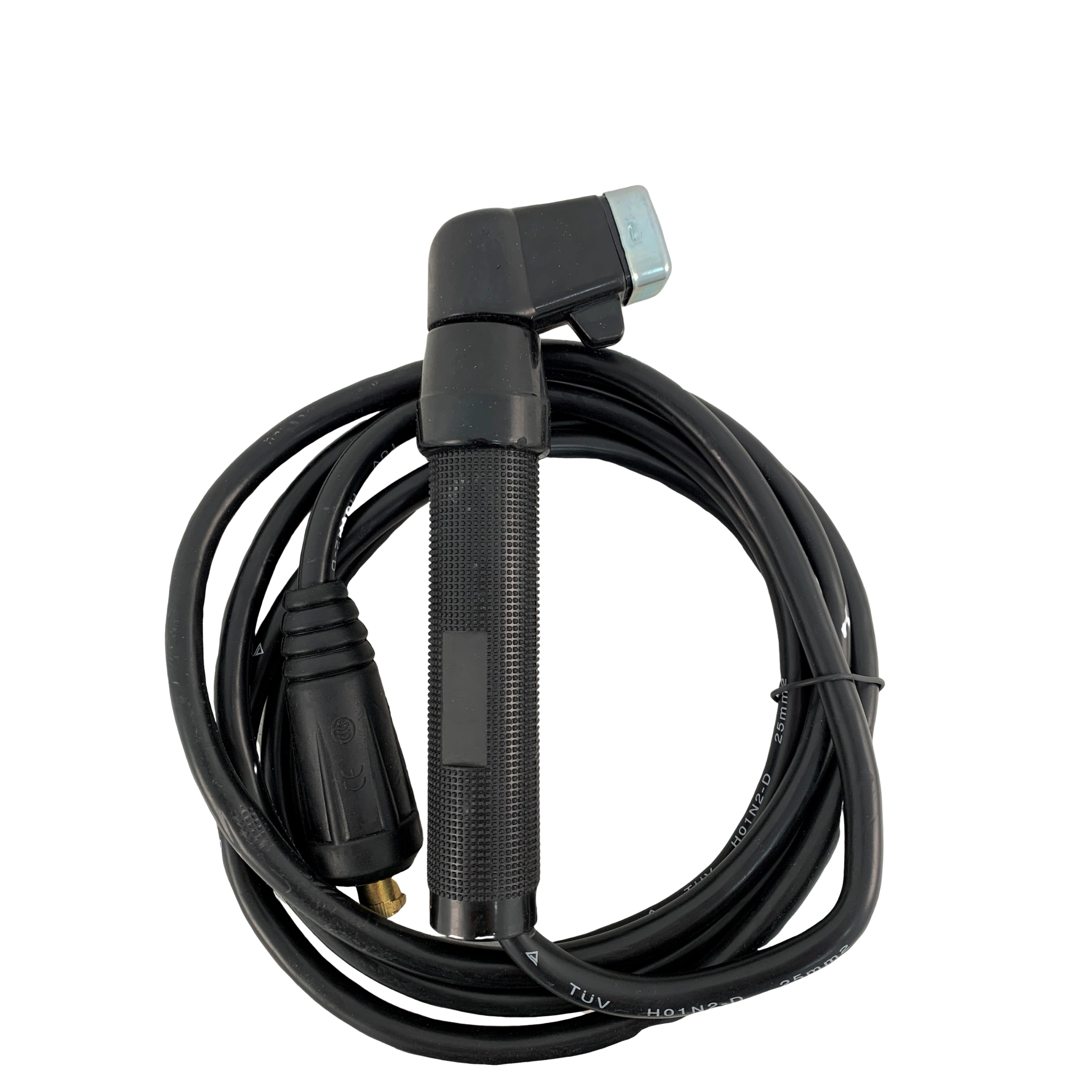

3m MMA lead with heavy duty twist lock electrode holder

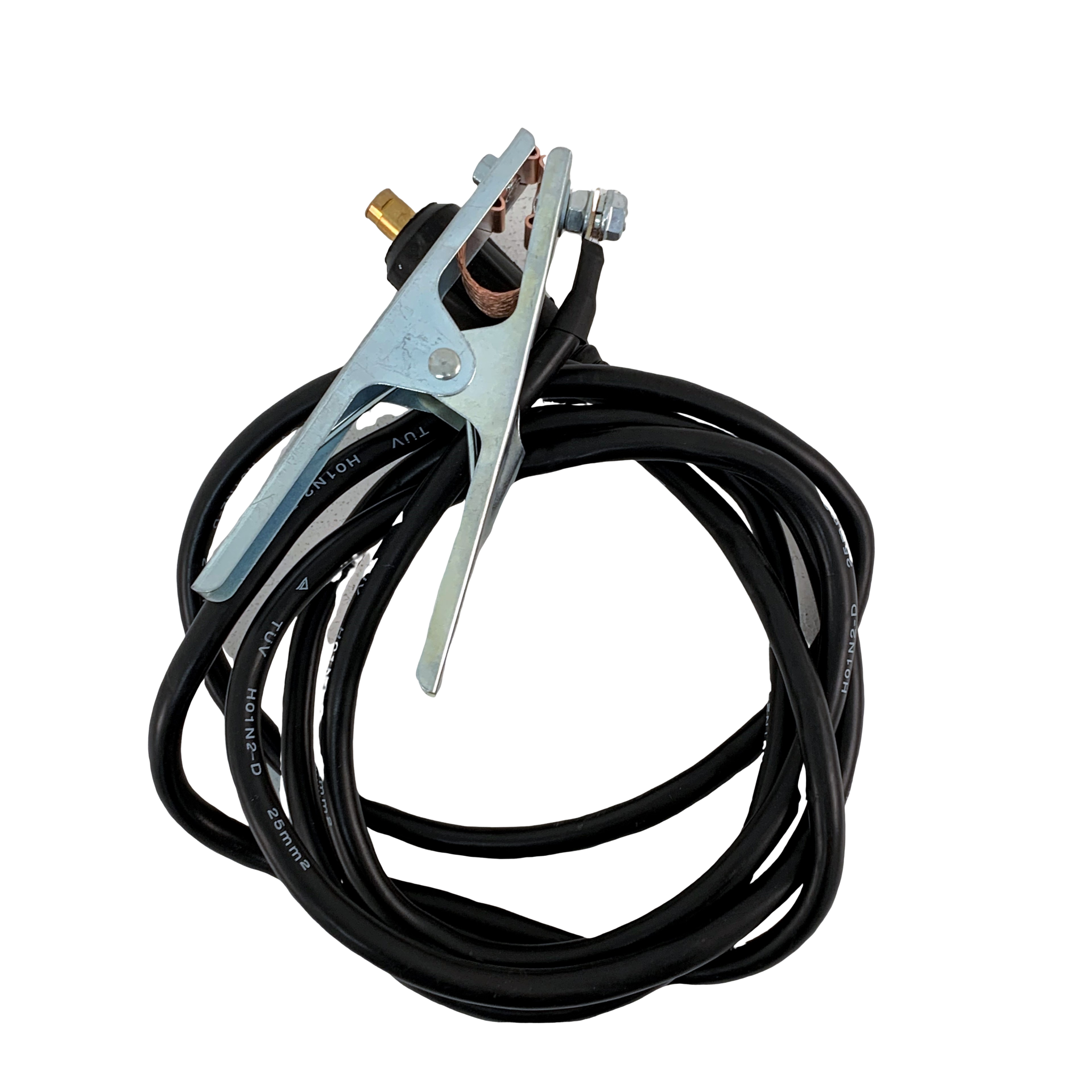

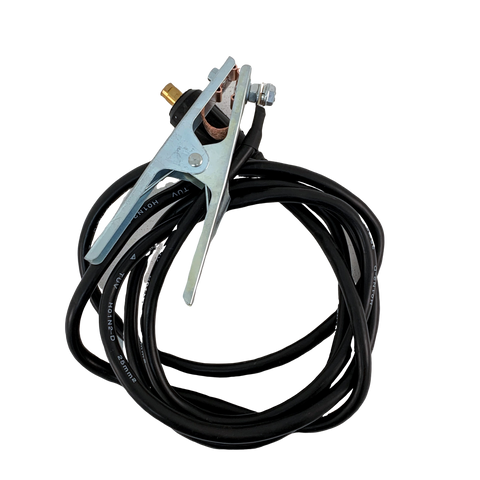

2.5m Earth Lead with heavy duty clamp
2 stage flow meter argon gas regulator
2m gas hose Quick connect fitting for connecting to machine
Carry Strap
Machine manual

Specifications:
Input power: Single phase 230V
Output current range: TIG AC 10-200A, TIG DC0-170A
Open Circuit voltage: 52V
I Max: TIG 30.5A, MMA 39.7A
I eff: 15A
Duty cycle @ 40C: 25% @ 200A, 60% @ 125A
Insulation Class: IP21/ H
Tungsten Diameter: 1.0 - 3.2mm
Electrode Diameter: 1.6mm - 4.0mm
Thermal overload: YES
Minimum generator: 8
Dimension (mm): 480 X 240 X 140mm
Weight (Kg): 7
