109TOOLs Smart Protractor (Small)

109TOOLs Smart Protractor (Small)

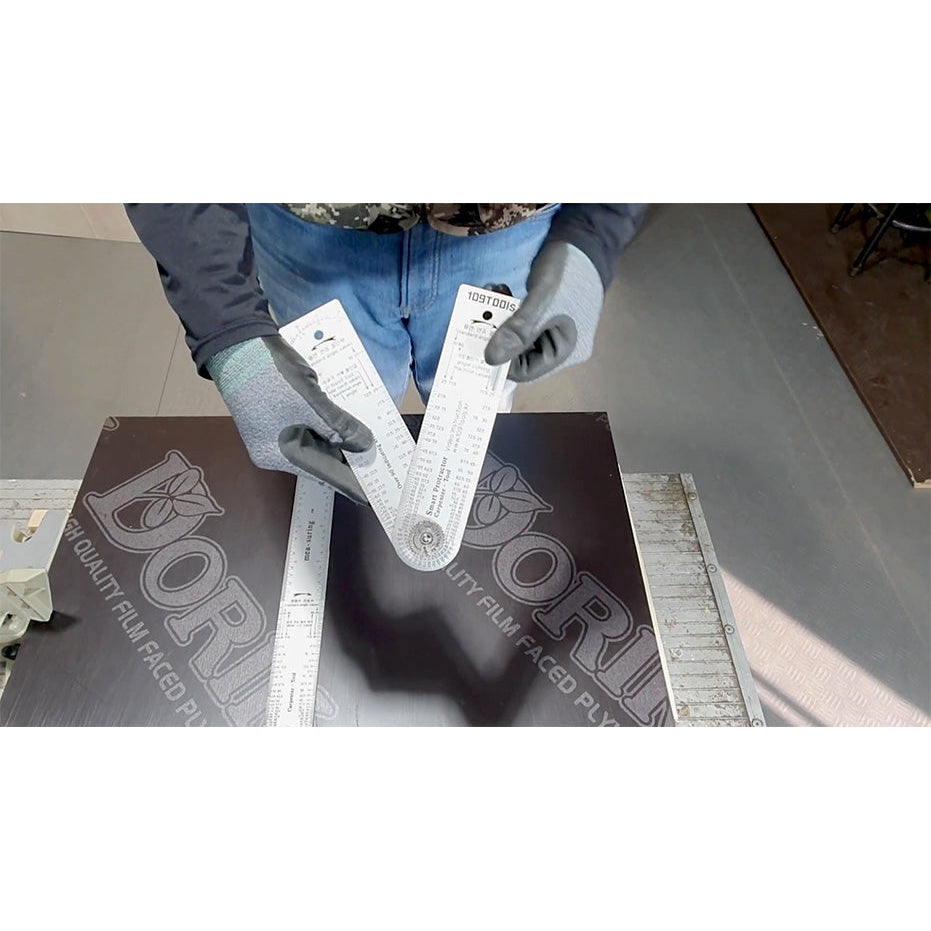

109Tools Smart Protractor can rotate 360° to measure and find any internal or external angle. Suitable for most materials or surfaces. The scales provide measurement angle value dimension on the scale and four different mitre cut values next to the scale.
If less than 90° the angle is indicated at the intersection of the two arms.
For over 90°, the arrow points at the scale on the semi-circle of the protractor.

Useful for;
Carpenters and builders
Construction engineers
Steel frame and plant engineers
Furniture designers, Woodworkers, Artisans
Costume designers

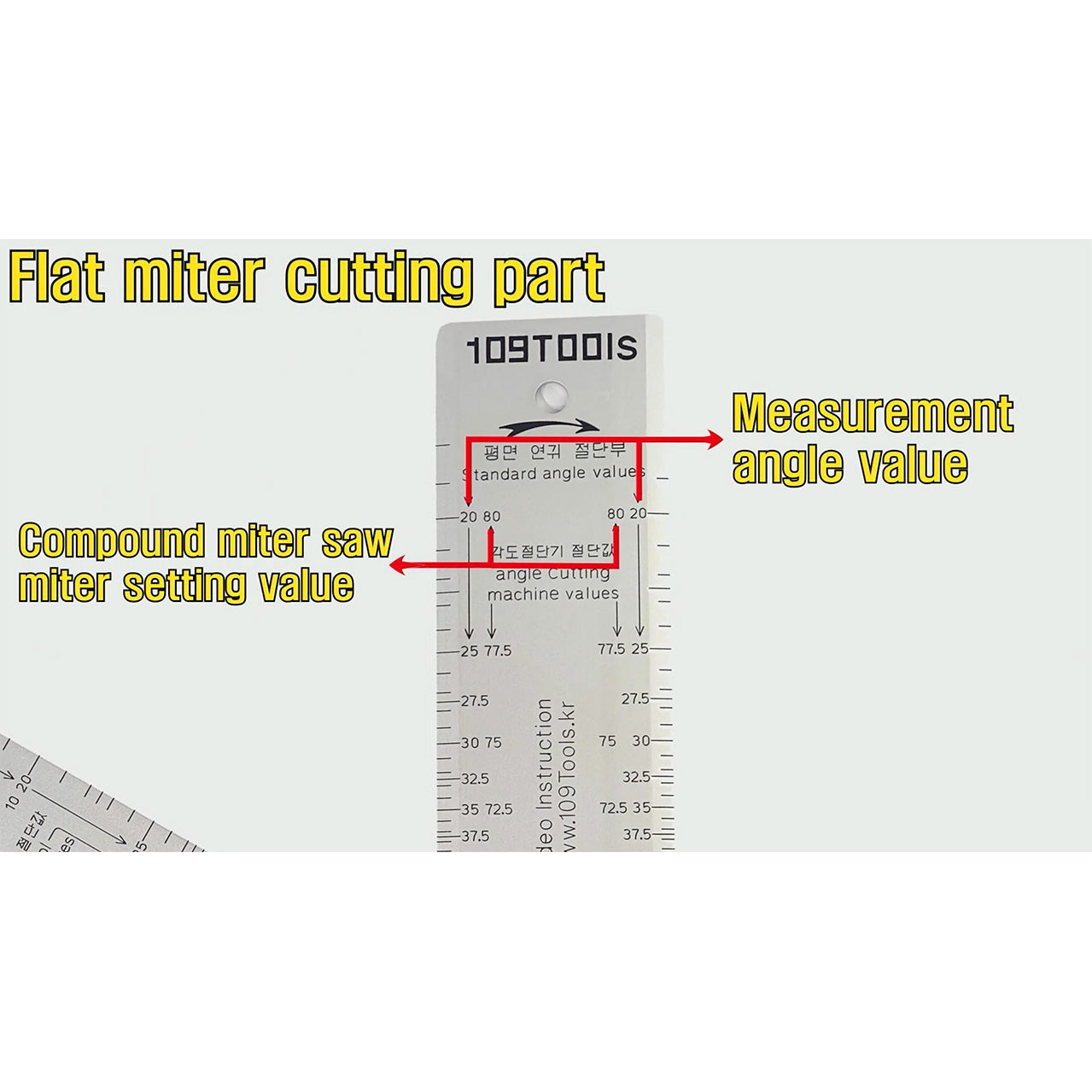

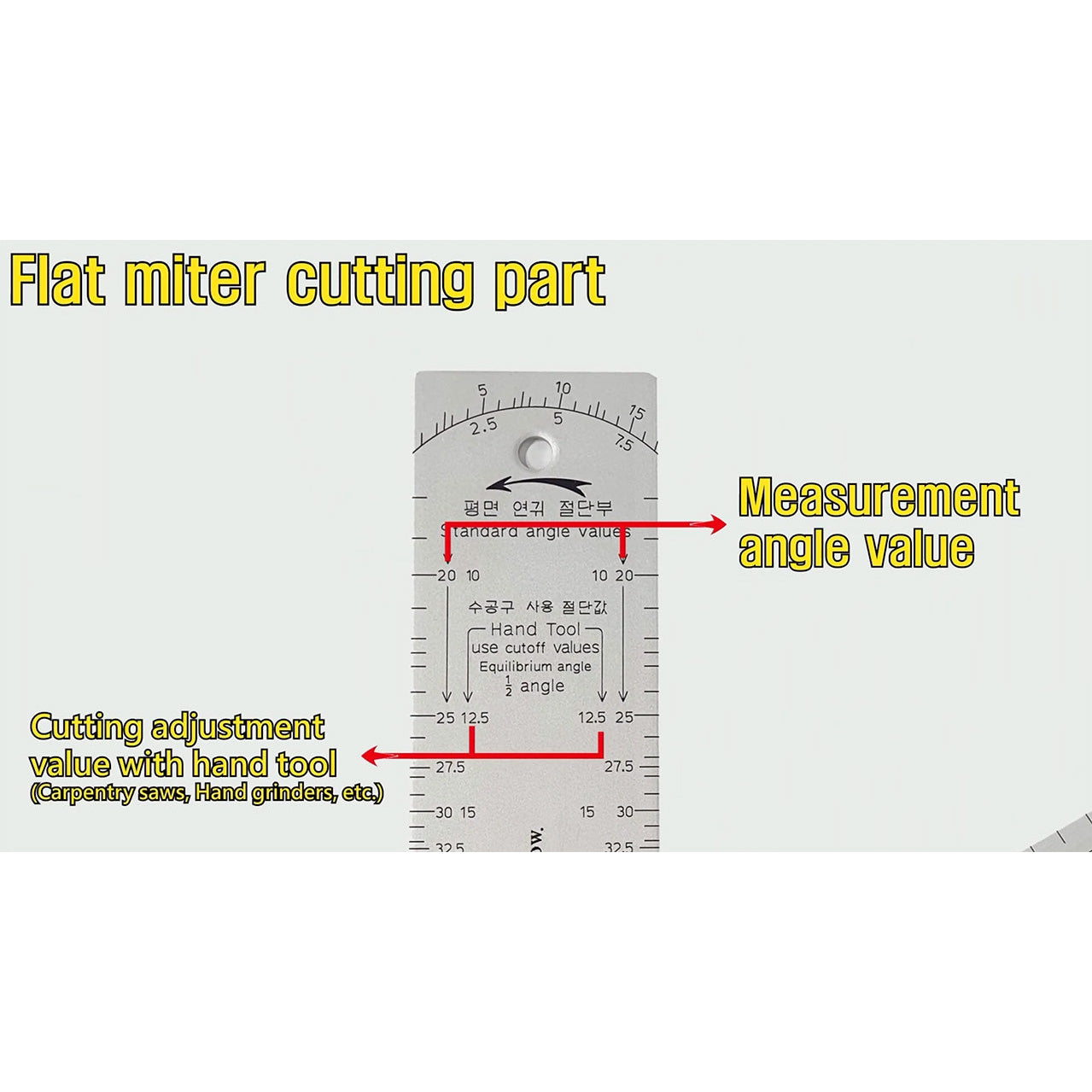

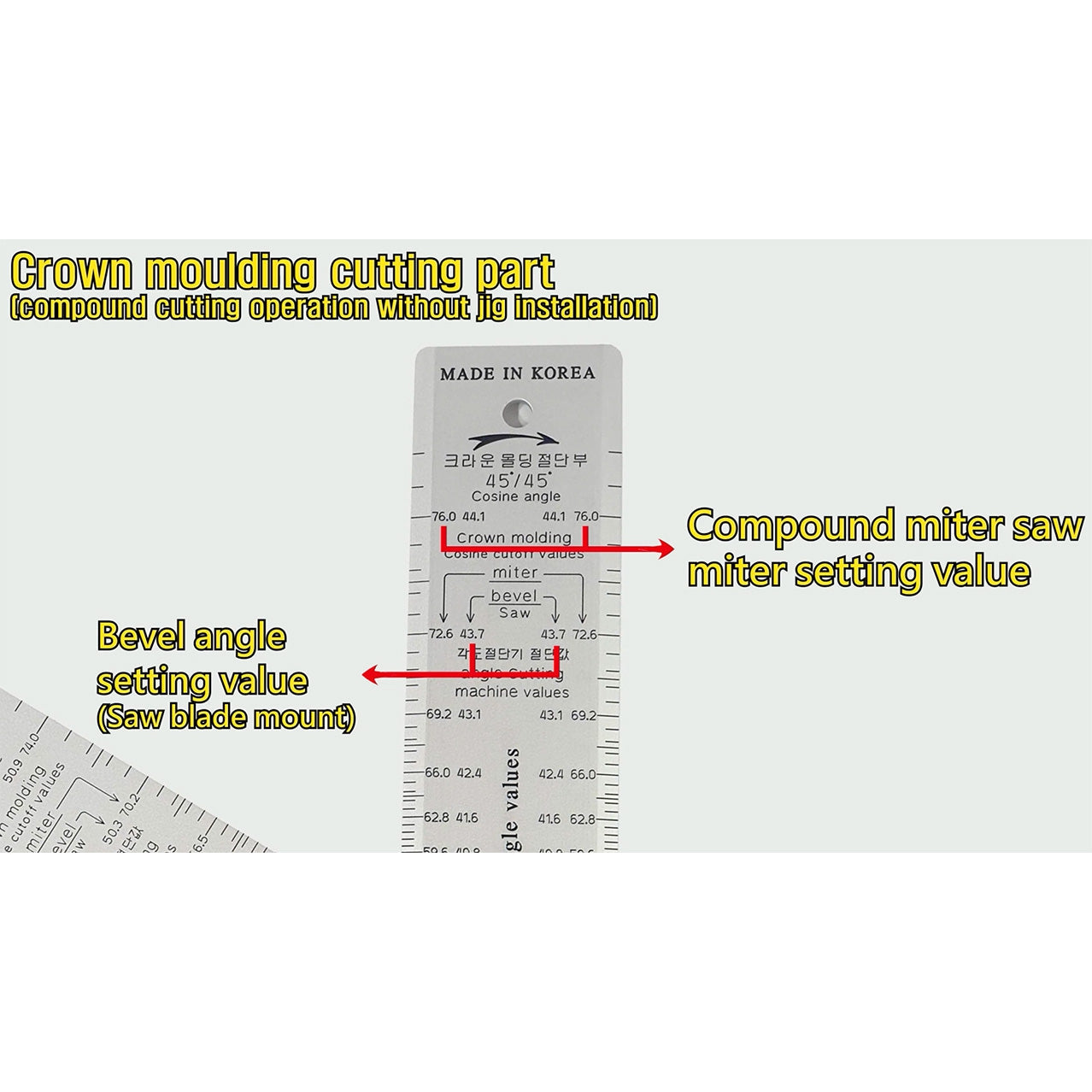

109Tools Smart protractor is equipped with scale graduations (standard angle values) on both sides of the arms and left and right edges. These scale graduations and slope measurements are based on the standard angle notation scale. Angles (Mitres) can be measured so that the angle value can be cut flat as well as perform compound miter cuts. In order to provide ease of use for miter cuts, four types of miter cut values are indicated in two rows that are marked on the two arms for easy cutting of the measured angle to the grid.

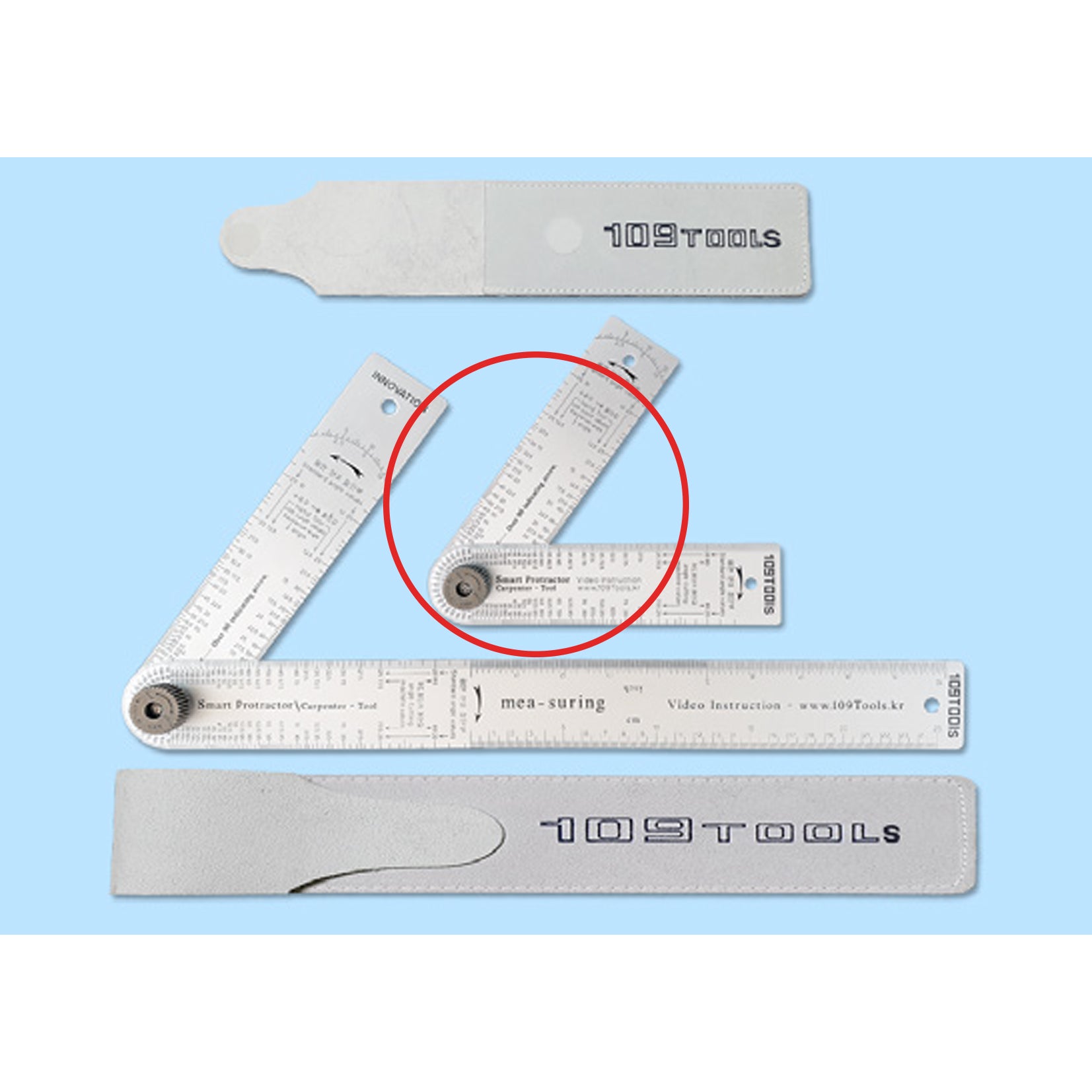

Size:
Small - 210 x 370 mm
